  Products



  • 3 1/2 Digits
  • Panel Mounting
  • Size 48 (H) x 96 (W) x 75 (D) mm
  • Supply std 220VAC. Optional 440VAC / 110VAC 50/60 Hz
  • Supply non-std 24VDC/110VDC available
  • Signal Input +/- 0-200mV / 0- 20V / 0-200V / 0-600V
  • Negligible drift with temperature compensated reference
  • Finger Proof Terminals

DIGITAL DC VOLT METER       next





  • 3 1/2 Digits
  • Panel Mounting
  • Size 48 (H) x 96 (W) x 75 (D) mm
  • Supply std 220VAC. Optional 440VAC / 110VAC 50/60 Hz
  • Supply non-std 24VDC/110VDC available
  • Signal Input +/- 0-75mV
  • Display reading as per DC Shunt
  • Negligible drift with temperature compensated reference
  • Finger Proof Terminals

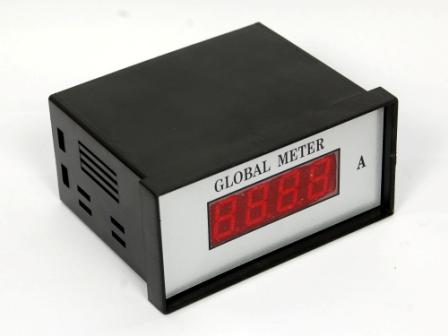

  • DIGITAL DC AMMETER      next





    • 3 1/2 Digits
    • Panel Mounting
    • Size 48 (H) x 96 (W) x 75 (D) mm
    • Supply std 220VAC. Optional 440VAC / 110VAC 50/60 Hz
    • Supply non-std 24VDC/110VDC available
    • Signal Input 0-200mV / 0- 20V / 0-200V / 0-600V AC
    • Negligible drift with temperature compensated reference
    • Finger Proof Terminals

    DIGITAL AC VOLT METER    next





    • 3 1/2 Digits
    • Panel Mounting
    • Size 48 (H) x 96 (W) x 75 (D) mm
    • Supply std 220VAC. Optional 440VAC / 110VAC 50/60 Hz
    • Supply non-std 24VDC/110VDC available
    • Signal Input 0-5A / 0-1A
    • Display reading as per C.T.
    • Negligible drift with temperature compensated reference
    • Finger Proof Terminals

    DIGITAL AC AMMETER           next


    DPM with Relay



    • 3 1/2 Digits
    • Panel Mounting
    • Size 48 (H) x 96 (W) x 75 (D) mm
    • Supply std 220VAC. Optional 440VAC / 110VAC 50/60 Hz
    • Supply non-std 24VDC/110VDC available
    • Signal Input +/- 0-75mV / 0-5V / 0- 20V / 0-200V / 0-600V
    • Optional Signal Input +/- 4-20 mA / 1-5V / 0-200mV
    • Built-in Relay 2A 1 C/O with fixed/adjustable setting
    • Negligible drift with temperature compensated reference
    • Finger Proof Terminals

    DPM WITH BUILT-IN RELAY
